APC UPS Back UPS Pro BR 650VA 390W BR650MI

APC UPS Back UPS Pro BR650MI

UPS Features

• Battery backup & surge protector outlets
• AVR with boost and trim
• Data line protection
• noise suppression
• LCD interface
• Powerchute personal edition
• Circuit Breaker
• Unit sensitivity

Package Contents

• UPS “BR650MI”
• Output Power Cord C13 to C14
• Serial Cable
• User Manual

Technical Specifications

• Rated Power: 390W / 650VA
• Output Frequency (sync to mains): 50/60 Hz +/- 1 Hz Sync to mains
• Topology: Line interactive
• On-battery Waveshape: Stepped approximation to a sinewave
• Transfer Time: 8 ms typical: 10 ms maximum
• Input frequency: 50/60 Hz +/- 3 Hz auto-sensing
• Input voltage range for main operations: 176 - 294 Vac
• Battery type: Lead-acid battery
• Typical recharge time: 12 hour(s)
• Nominal Battery Voltage: 12V
• Battery capacity: 7Ah
• Expected Battery Life (years): 3-5

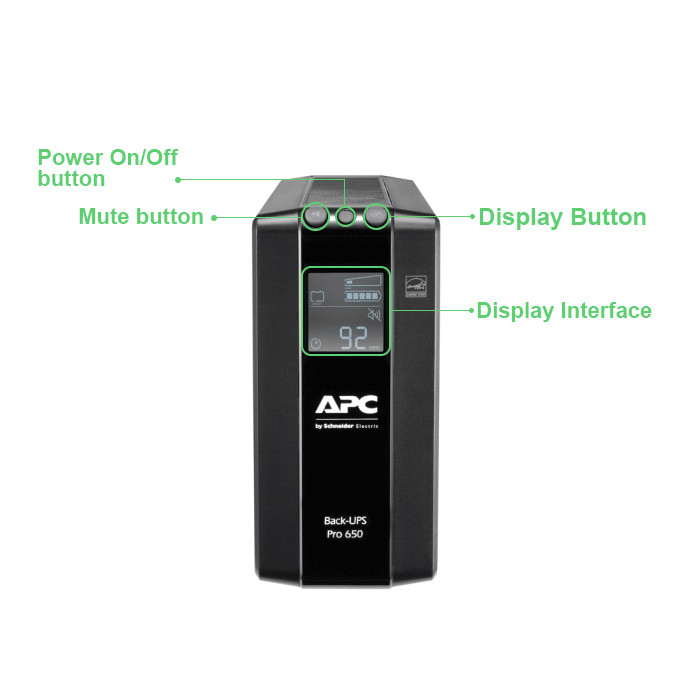

• Control panel: Multifunction LCD status and control console
• Audible Alarm: Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm
• Physical Maximum (Height x Width x Depth): 190 x 91 x 310 mm
• Physical Shipping (Height x Width x Depth): 255 x 440 x 143 mm
• Physical Net Weight: 6.4 kg
• Physical Shipping Weight: 7.4 kg
• Protection Class: IP20
• Operating Temperature: 0 - 40 °C
• Acoustic level: 45dBA
• Standard warranty: 2 years repair or replace
