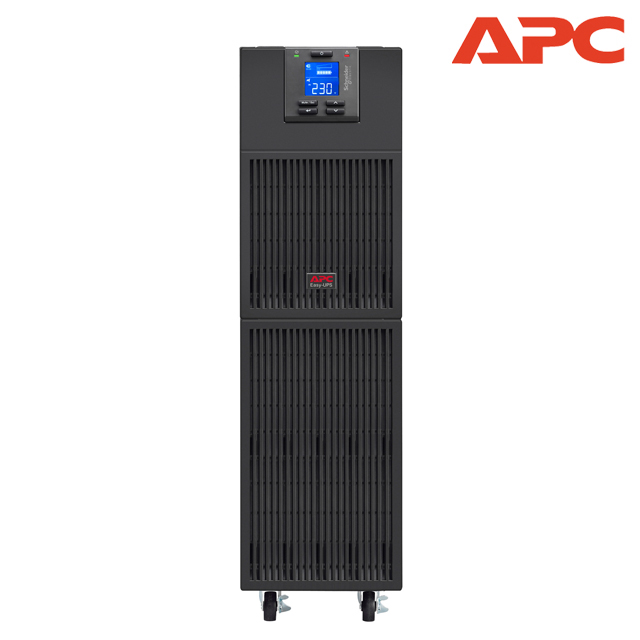

APC UPS SRV6KI Easy UPS On-Line 6000VA/6000W 230V Tower

UPS APC SRV6KI Easy UPS On-Line

UPS Features & Benefits

• Input Power Factor Correction
• ECO Mode / Green Mode
• Excellent Power Quality and Performance
• Generator Compatible
• Wide Input Voltage Range
• High Power Factor
• USB Port / Serial Port
• Environmentally Robust
• Flash Upgradeable Firmware
• Intelligent Battery Management
• LCD/LED Display
• Overvoltage Cutoff Device Protection
• Power Conditioning

Technical Specifications

• Max Configurable Power (Watts) : 6kW / 6kVA
• Output Frequency (sync to mains) : 50/60 Hz +/- 3 Hz Sync to mains
• Topology : Double conversion online
• Waveform type : Sine wave
• Bypass : Internal bypass (automatic and manual)
• Input frequency : 40 - 70 Hz
• Input voltage range for main operations : 110 - 300 Adjustable (half load), 176 - 300V
• Other Input Voltages : 220, 240
• Typical recharge time : 3hour(s)
• Battery Type (maintenance free) : 12 V / 7 AH x 16
• Interface Port(s) : DB-9 RS-232, Intelligent Smart Slot, USB
• Control panel : Multifunction LCD status and control console
• Audible Alarm : Alarm when on battery, distinctive low battery alarm : overload continuous tone alarm
• Surge energy rating : 600Joules
• Physical Maximum (Height x Width x Depth) : 685MM x 190MM x 374MM
• Physical Shipping (Height x Width x Depth) : 910MM x 290MM x 495MM
• Physical Net Weight : 54.0KG
• Physical Shipping Weight : 66.0KG
• Protection Class : IP20
• Operating Temperature : 0 - 40 °C
• Standard warranty: 2 years repair or replace
