UPS APC Back UPS BX 1600VA 900W BX1600MI-MS

UPS APC Back UPS BX1600MI-MS

Spesifikasi :

UPS Features & Benefits :

• Intelligent battery management
• Battery failure notification
• Safety-agency approved

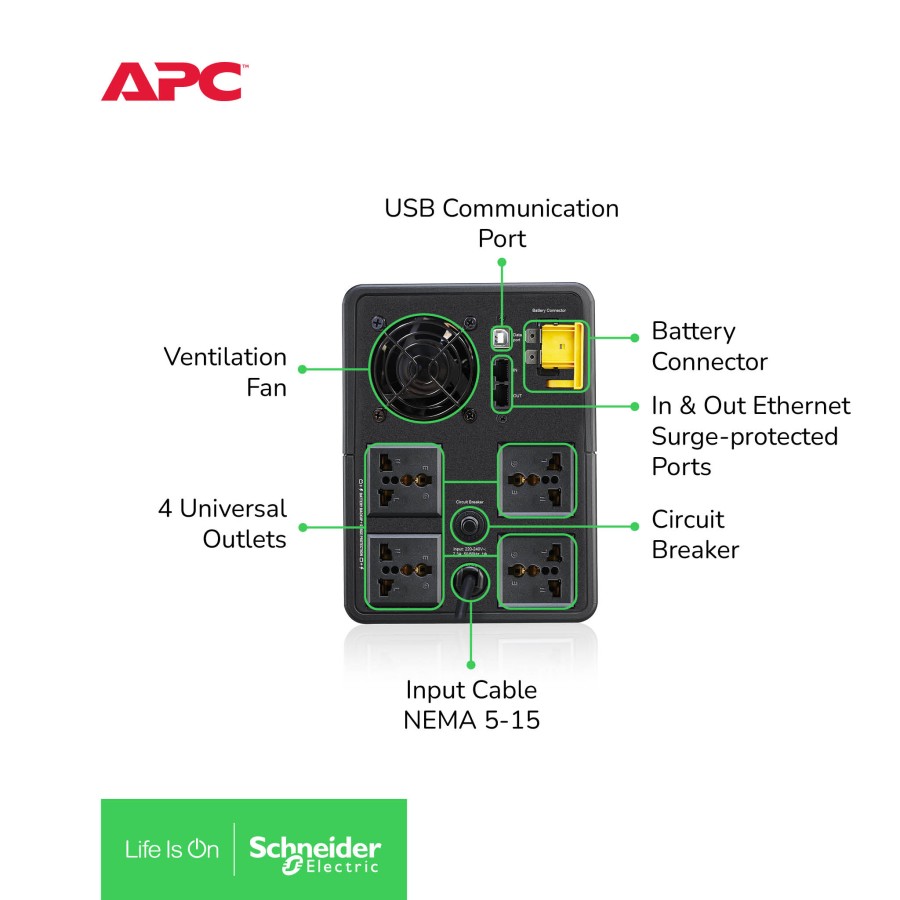

• Battery-protected and surge-only outlets

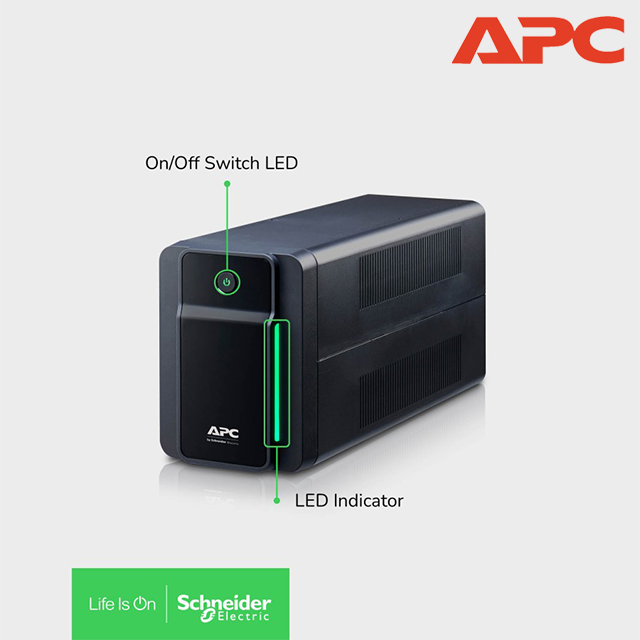

• LED Indicators
• Transformer-block spaced outlets
• Boost Automatic Voltage Regulation (AVR)
• Cold-start capable
• Quick Mute
• Voltage Sensitivity Adjustment
• PowerChute Personal Edition Software

Technical Specifications :

• Max Configurable Power (Watts) : 650 Watts / 1.2kVA
• Output Frequency (sync to mains) : 50/60 Hz +/- 1 Hz Sync to mains
• Topology : Line interactive
• Waveform type : Stepped approximation to a sinewave
• Transfer Time : 6 ms typical : 10 ms maximum
• Input frequency : 50/60 Hz +/- 5 Hz Auto-sensing
• Input voltage range for main operations : 140 - 300 (230 V) VAC
• Input Power Factor at Full Load : 0.54
• Battery type : Lead-acid battery
• Typical recharge time : 8hour(s)
• Nominal Battery Voltage : 12V
• Expected Battery Life (years) : 1 – 2
• Battery Volt-Amp-Hour Capacity : 108
• Control panel : LED Status display with on line : on battery
• Audible Alarm : Alarm when on battery : distinctive low battery alarm
• Surge energy rating : 273Joules
• Data Line Protection : RJ45 10/100/1000 Base-T Ethernet protection
• Physical Maximum (Height x Width x Depth) : 190MM x 140MM x 390MM
• Physical Shipping (Height x Width x Depth) : 297MM x 235MM x 495MM
• Physical Net Weight : 7.6KG
• Physical Shipping Weight : 8.6KG
• Protection Class : IP20
• Operating Temperature : 0 - 40 °C
• Standard warranty : 2 years repair or replace
