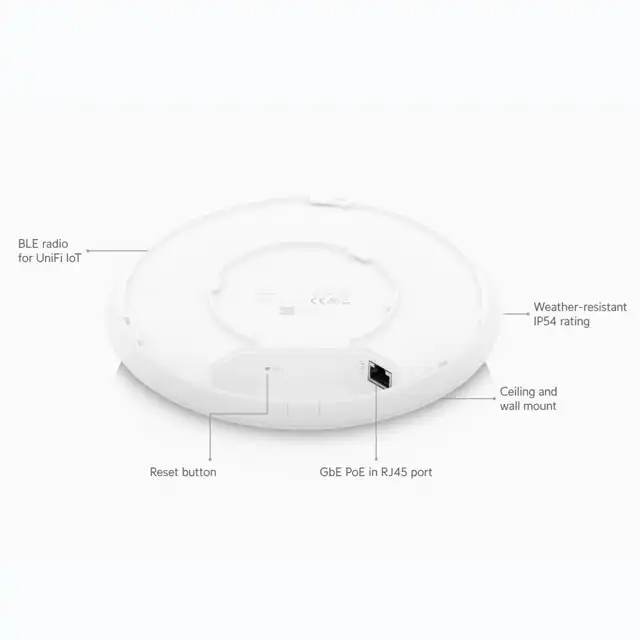

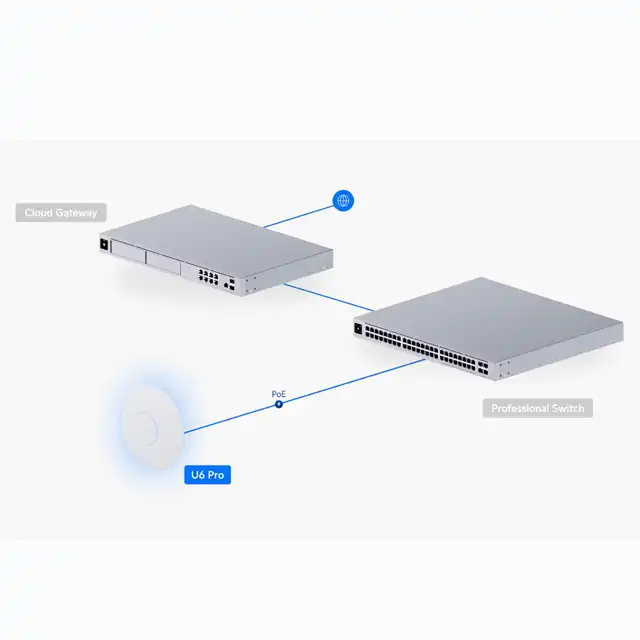

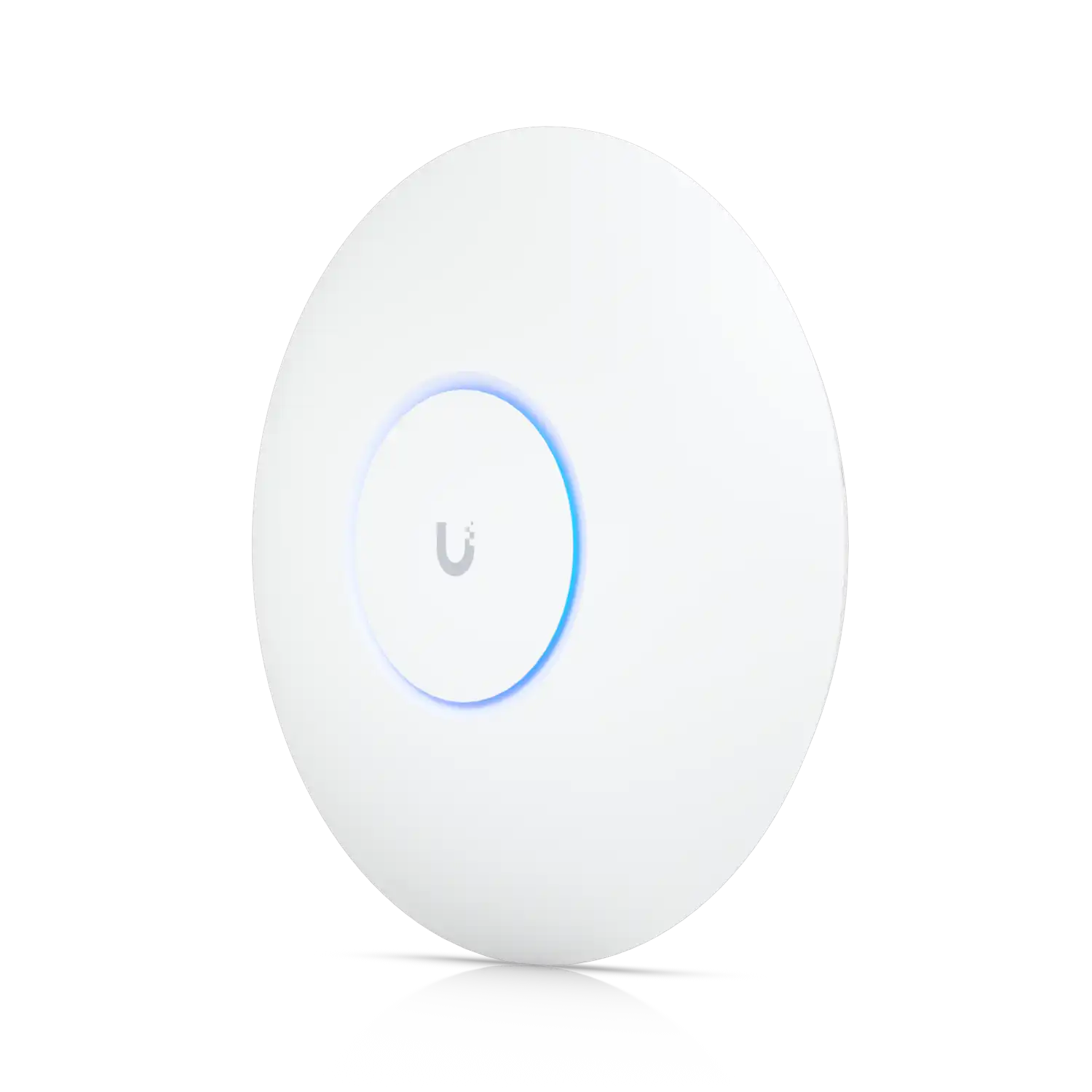

Ubiquiti U6 Pro | Unifi U6 Pro Ceiling-mounted WiFi 6 Access Point

Ubiquiti U6 Pro | Unifi U6 Pro Ceiling-mounted WiFi 6 Access Point

Spesifikasi :

Overview

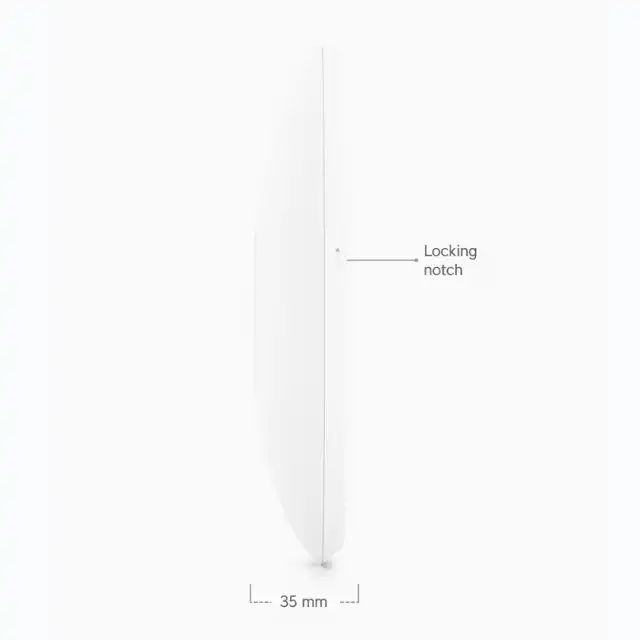

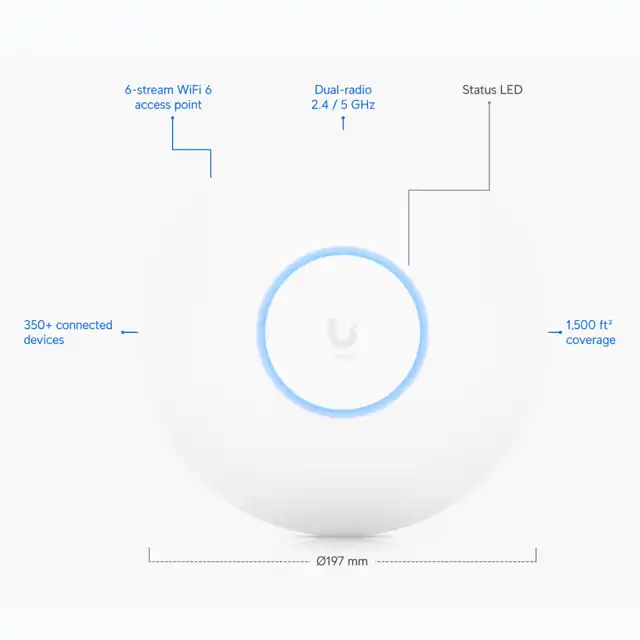

• Dimensions: Ø197 x 35 mm (Ø7.8 x 1.4")
• WiFi Standard: WiFi 6
• Spatial Streams: 6
• Coverage Area: 140 m² (1,500 ft²)
• Max. Client Count: 350+
• Uplink: GbE
• Mounting: Ceiling, Wall (Pro Mount Included)
• Weatherproofing: IP54
• Power Method: PoE

Performance

MIMO

• 5 GHz: 4 x 4 (DL/UL MU-MIMO)
• 2.4 GHz: 2 x 2 (UL MU-MIMO)

Max. Data Rate

• 5 GHz 4.8 Gbps (BW160)
• 2.4 GHz 573.5 Mbps (BW40)

Antenna Gain

• 5 GHz 6 dBi
• 2.4 GHz 4 dBi

Max. TX Power

• 5 GHz 26 dBm
• 2.4 GHz 22 dBm
• Max. BSSIDs 8 per Radio

Supported Data Rates

• 802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
• 802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
• 802.11n 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)

Features

• Wireless Meshing
• Band Steering
• 802.11v BSS Transition Management
• 802.11r Fast Roaming
• 802.11k Radio Resource Management (RRM)
• Advanced Radio Management
• Passpoint (Hotspot 2.0)
• Captive Hotspot Portal
• Private Pre-Shared Key (PPSK)
• WiFi Speed Limiting
• Client Device Isolation
• WiFi Schedules
• RADIUS over TLS (RadSec)
• Dynamic RADIUS-assigned VLAN

Hardware

• Max. Power Consumption 13W
• Supported Voltage Range 44—57V DC
• Networking Interface (1) GbE RJ45 port
• Weight 580 g (1.3 lb)
• Management Ethernet, Bluetooth
• Enclosure Material Polycarbonate
• Mount Material Stainless steel (SUS304)
• LEDs System White/Blue
• Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz)
• NDAA Compliant

Certifications

• CE, FCC, IC, Anatel, SRRC
• Operating Frequency US/CA:2400 - 2472 MHz
• U-NII-1: 5150 - 5250 MHz
• U-NII-2A: 5250 - 5350 MHz
• U-NII-2C: 5470 - 5725 MHz
• U-NII-3: 5725 - 5850 MHz

Worldwide:

• 2400 - 2483.5 MHz
• 5150 - 5725 MHz

Ambient Operating Temperature -30 to 60° C (-22 to 140° F)

Ambient Operating Humidity 5 to 95% noncondensing

Software

• Application Requirements UniFi Network
• Version 6.0.45 and later
