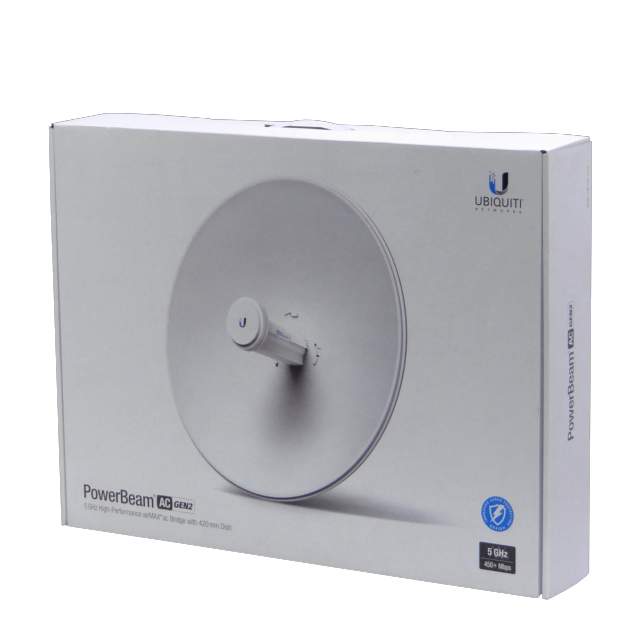

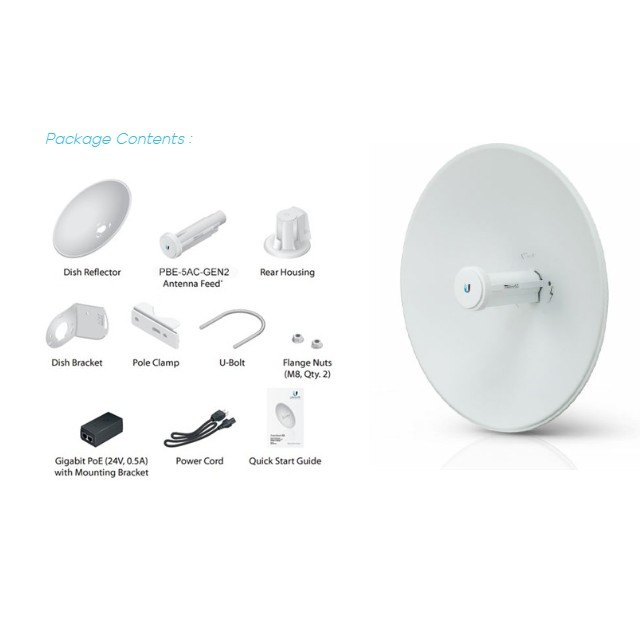

Ubiquiti AirMax Power Beam PBE-5AC-GEN2

Ubiquiti AirMax Power Beam PBE-5AC-GEN2

Spesifikasi :

Hardware

• Networking interface : (1) GbE RJ45 port
• Power method : Passive PoE 2-pair (4, 5+; 7, 8 return)
• Max. power consumption : 8.5W
• Supported voltage range : 20—27V DC
• Power supply : 24V, 0.5A gigabit PoE adapter (Included)
• ESD/EMP protection : Air/contact: ± 24 kV
• LEDs : (1) Power, (1) LAN, (4) WLAN
• Salt fog test : - IEC 68-2-11 (ASTM B117) - Equivalent: MIL-STD-810 G method 509.5
• Vibration test : IEC 68-2-6
• Temperature shock test : IEC 68-2-14
• UV test : - IEC 68-2-5 at 40° C (104° F) - Equivalent: ETS 300 019-1-4
• Wind-driven rain test : - ETS 300 019-1-4 - Equivalent: MIL-STD-810 G method 506.5
• Ambient operating temperature : -40 to 70 C (-40 to 158 F)
• Ambient operating humidity : 5 to 95% noncondensing
• Certifications : CE, FCC, IC, RoHS

System

• Gain : 25 dBi
• Channel sizes - PtP Mode: 10/20/30/40/50/60/80 MHz - PtMP Mode: 10/20/30/40 MHz

Operating Frequency (MHz)

• Worldwide 5150-5875 MHz
• USA
• U-NII-1 : 5150-5250 MHz
• U-NII-2A : 5250-5350 MHz
• U-NII-2C : 5240-5725 MHz
• U-NII-3 : 5725-5850 MHz

Management Radio (MHz)

• Worldwide 2412 - 2472 MHz
• US/CA 2412 - 2462 MHz

Mechanical

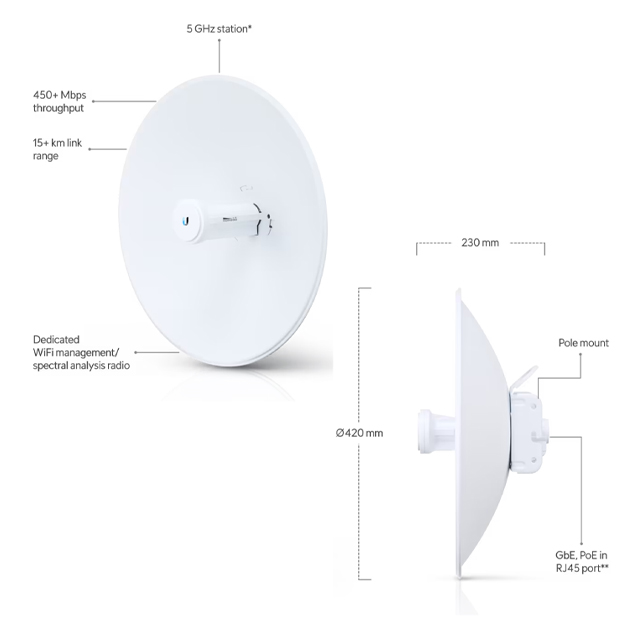

• Dimensions : 420 x 420 x 230 mm (16.5 x 16.5 x 9.1")
• Enclosure material : UV-stabilized plastic, powder-coated SPCC
• Wind loading : 380 N at 200 km/h (85.4 lbf at 125 mph)
• Wind survivability : 200 km/h (125 mph)
• Mounting : Pole mount kit (Included)
