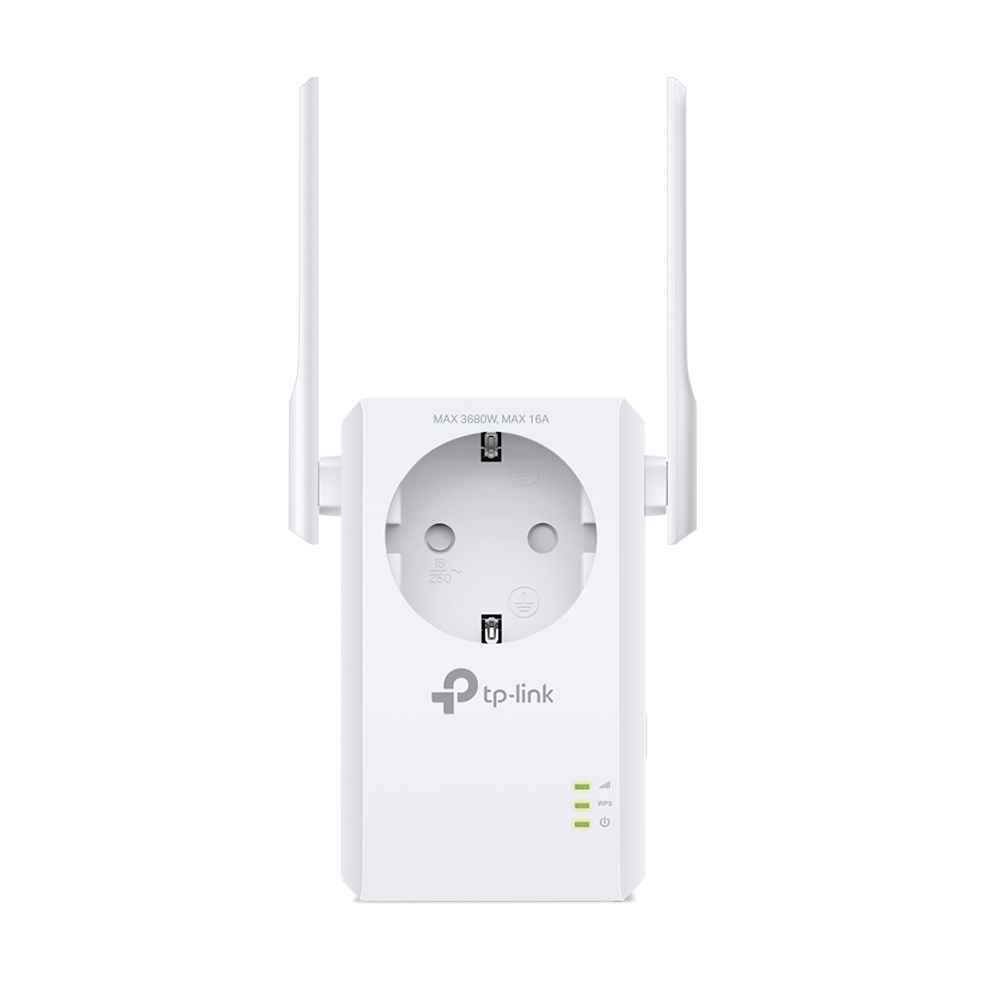

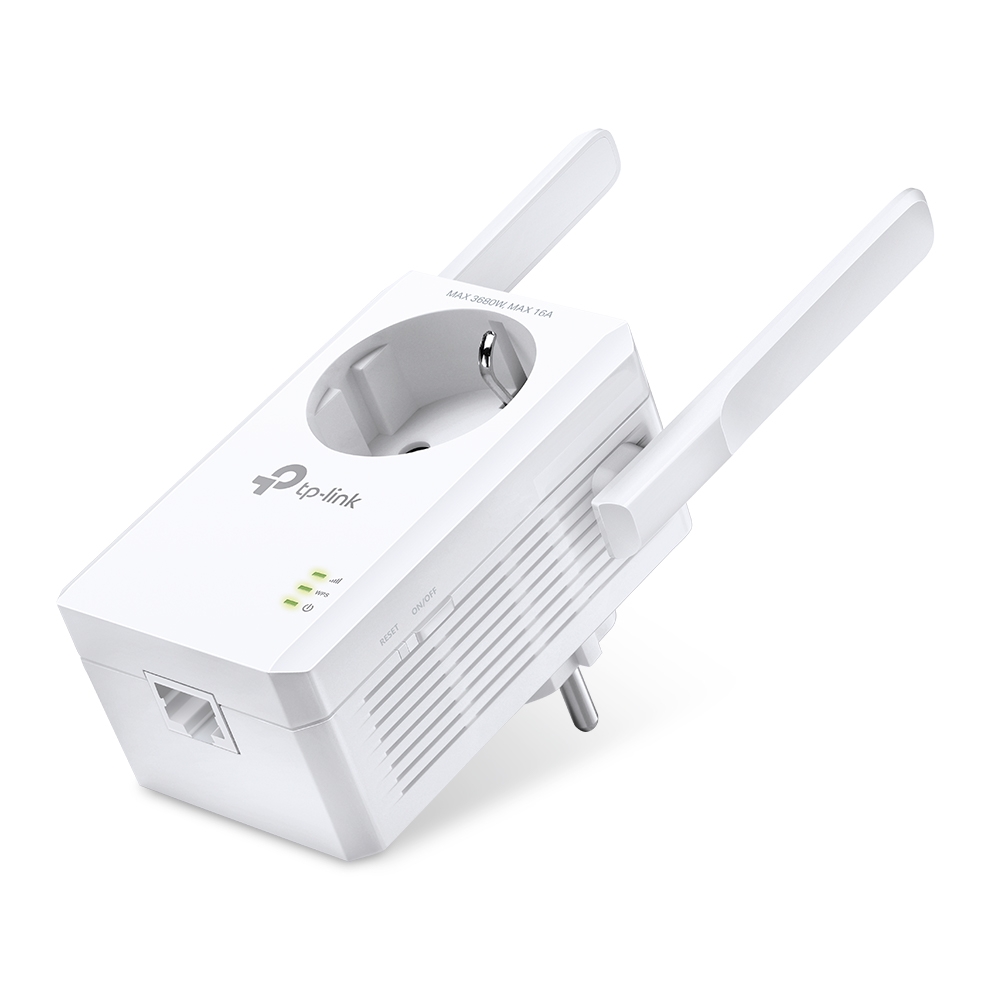

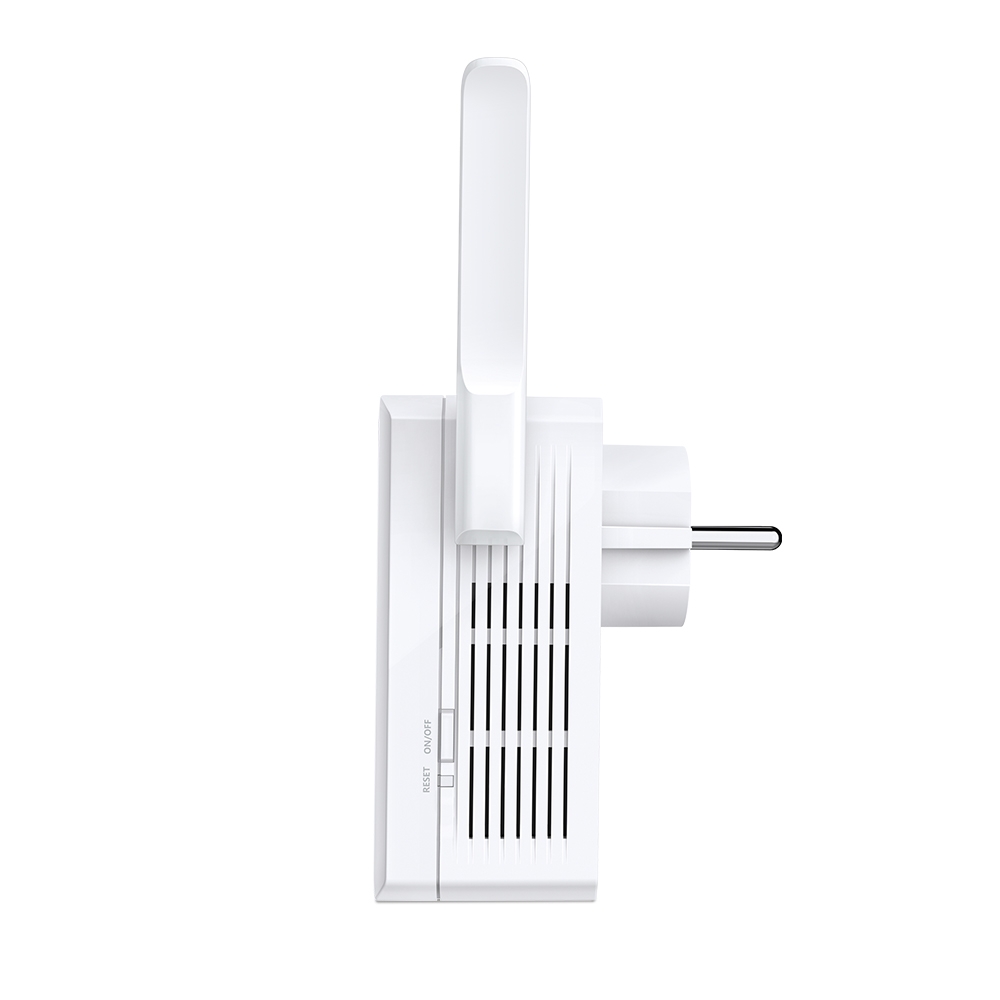

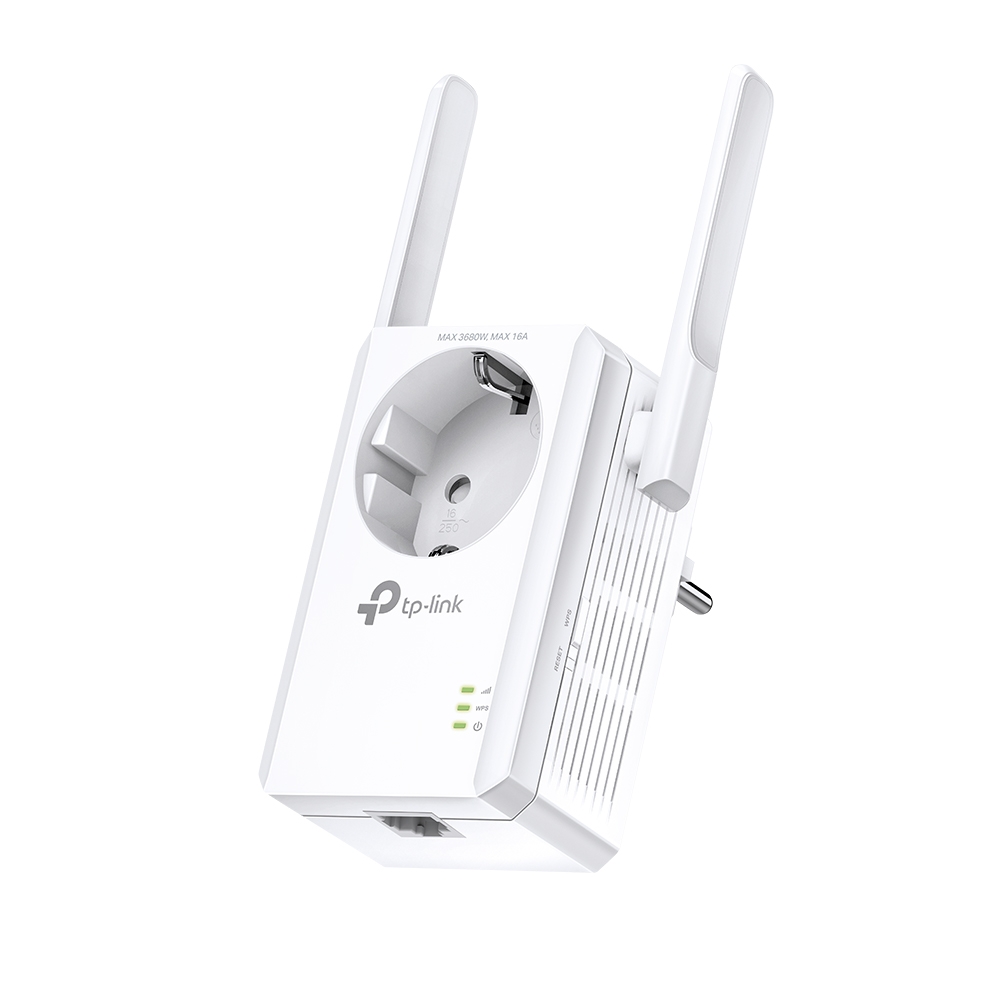

TP-Link TL-WA860RE 300Mbps Wi-Fi Range Extender with AC Passthrough

TP-Link TL-WA860RE 300Mbps Wi-Fi Range Extender with AC Passthrough

WIRELESS

• Working Modes : Range Extender/Access Point

HARDWARE FEATURES

• Standards and Protocols : IEEE 802.11b/g/n
• Plug Type : EU, UK, US
• Interface : 1 x 10/100Mbps Ethernet Port (RJ45)
• Ports : 1 x 10/100Mbps Ethernet Port (RJ45)
• Button : WPS Button, RESET Button
• Input Power : 100-240V~50/60Hz
• Power Consumption : 3.2W
• Dimensions ( W x D x H ) : 3.74×2.28×1.65 in (95×58×42 mm) (L × W × H)
• Antenna : 2 x external

WIRELESS FEATURES

• Wireless Standards : IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
• Frequency : 2.4 GHz
• Signal Rate

  • 11n: Up to 300Mbps (dynamic)
  • 11g: Up to 54Mbps (dynamic)
  • -11b: Up to 11Mbps (dynamic)
• Working Modes : Range Extender/Access Point
• Reception Sensitivity 2.4 GHz

  • 11g 54Mbps: -80dBm, 11n HT20: -79dBm
  • 11n HT40: -75dBm
• Transmit Power : CE: <15dBm
• Wireless Modes : Range Extender/Access Point
• Wireless Functions

  • WMM (Wi-Fi Multimedia)
  • Wireless MAC Address Filtering
  • Wireless Statistic
  • Domain Login Function
  • LED control
  • Power Schedule
• Wireless Security

  • 64/128/152-bit WEP
  • WPA-PSK / WPA2-PSK encryptions
• Transmission Power : CE: <15dBm

FEATURES:

• Range Extender mode boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly
• Miniature size and wall-mounted design make it easy to deploy and move flexibly
• Extra power socket making sure that no power outlet is going to waste
• 2 fixed external antennas provide excellent Wi-Fi coverage and reliability
• Easily expand wireless coverage at a push of Range Extender button
• Create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability
