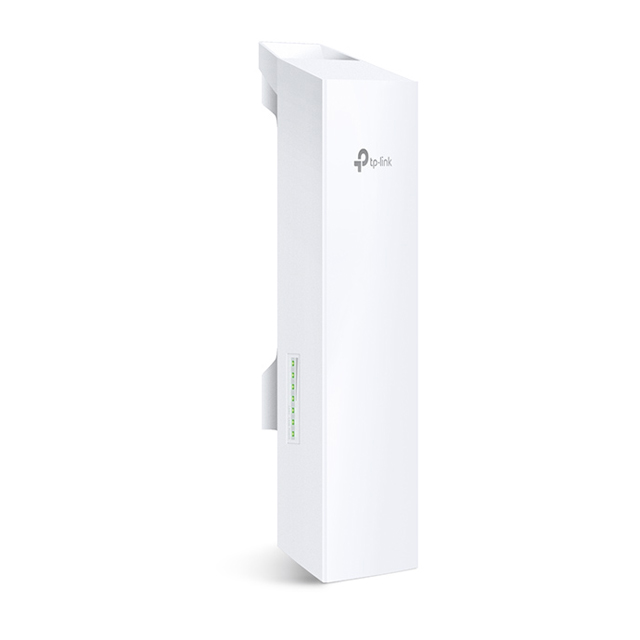

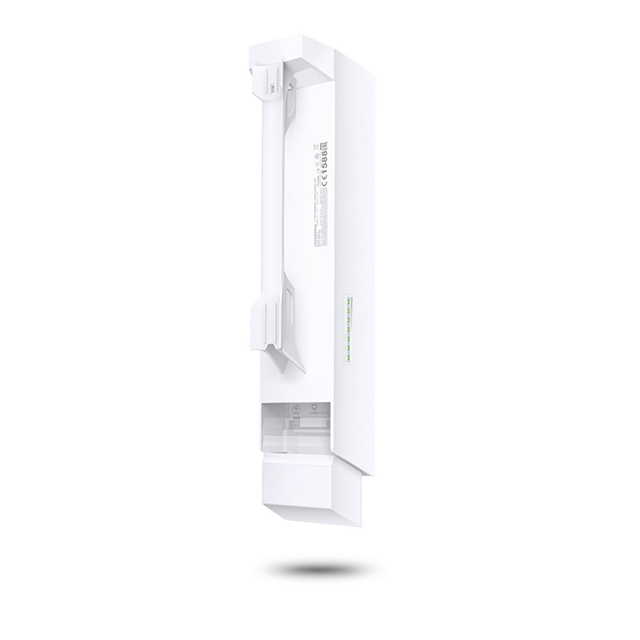

TP-Link CPE220 2.4GHz 300Mbps 12dBi Outdoor CPE

TP-Link CPE220 2.4GHz High Power Wireless Outdoor

HARDWARE FEATURES

• Processor: Qualcomm Atheros 560MHz CPU, MIPS 24Kc
• Memory: 64MB DDR2 RAM, 8MB Flash

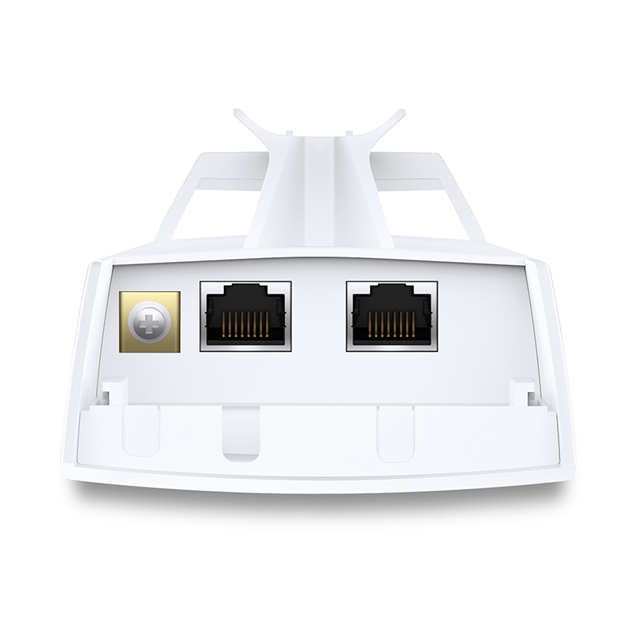

• Interface

  • 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
  • 1 10/100Mbps Shielded Ethernet Port (LAN1)
  • 1 Grounding Terminal
  • 1 Reset Button
• Power Supply

  • Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
  • Voltage range: 16-27VDC
• Max. Power Consumption
• 10.8 Watts Max
• Note: When deployed using Passive PoE, the power drawn from the power source will
• be higher by some amount depending on the length of the connecting cable.
• Dimensions ( W x D x H ): 11×3.1×2.1 inch (276×79×60 mm)
• Antenna

  • Built-in 12dBi 2x2 Dual-polarized Directional Antenna
  • Beam Width: 60° (H-Plane) / 30° (E-Plane)
  • Note: For more details, please refer to datasheet
• Protection

• 15KV ESD Protection
• 6KV Lightning Protection
• Enclosure

  • Outdoor ASA stabilized plastic material
  • IPX5 waterproof Certification

WIRELESS FEATURES

• Wireless Standards: IEEE 802.11b/g/n (with Pharos MAXtream disabled)
• Proprietary Protocol: TDMA Mode (with Pharos MAXtream enabled)
• Wireless Speeds

  • Up to 300Mbps (40MHz,Dynamic)
  • Up to 144.4Mbps (20MHz,Dynamic)
  • Up to 72.2Mbps (10MHz,Dynamic)
  • Up to 36.1Mbps (5MHz,Dynamic)
• Frequency

  • 2.4~2.483GHz
  • Note: Available operating frequency may vary depending on the limitations
  • of the countries or regions in which the device is used.
• Transmission Power

  • 30dBm/1000mw (Adjustable power by 1dBm)
  • Note: Maximum transmission power may vary across different channels depending
  • on the limitations of the countries or regions in which the device is used.

FEATURES

• Antena MIMO terarah dual-polarisasi 2x2 12dBi terintegrasi
• Daya transmisi yang dapat disesuaikan dari 0 hingga 30dBm/1000mw. Catatan: Daya transmisi maksimum dapat bervariasi tergantung pada wilayah negara.
• Hal ini bergantung pada batasan negara atau wilayah tempat perangkat digunakan.
• Optimasi tingkat sistem untuk transmisi nirkabel jarak jauh lebih dari 13 km.
• Teknologi TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) meningkatkan kinerja produk dalam hal throughput, kapasitas, dan latensi, ideal untuk aplikasi PTMP.
• Sistem Manajemen Terpusat – Pharos Control
• Mode operasi AP / Klien / Router AP / Klien Router AP (WISP)
• Adaptor PoE Pasif mendukung penyebaran Power over Ethernet hingga 60 meter (200 kaki) dan memungkinkan perangkat untuk direset dari jarak jauh.
