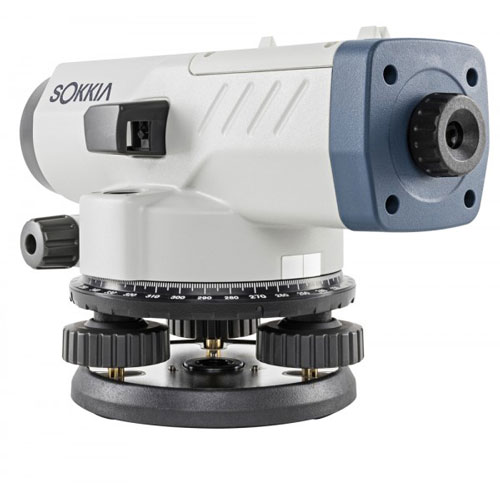

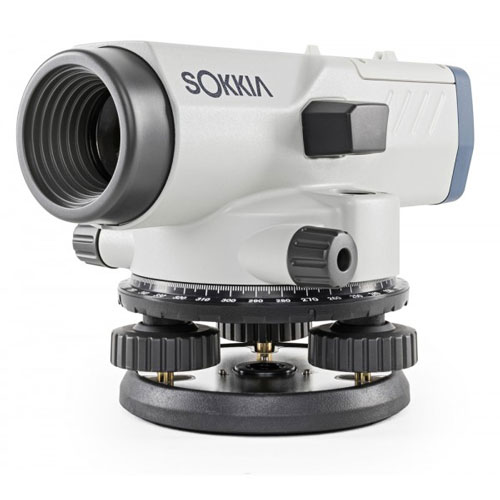

Sokkia B40A Automatic Level Waterpass

Sokkia B40A Automatic Level Waterpass

Key Features of Sokkia B40A Automatic Level

The compensator of Sokkia B40A Optical Level incorporates four suspension wires made of super-high-tensile metal that features minimal thermal expansion coefficient, providing unmatched durability and accuracy. Finely tuned magnetic damping system quickly levels and stabilizes the line of sight despite the fine vibrations present when working near heavy equipment or busy roadways. 20cm (7.9 in.) – Ultra-Short Minimum Focus Sokkia Auto Level B40A can focus on objects at 20cm (7.9 in.) in front of the telescope. This feature dramatically facilitates the works in confined spaces. Horizontal Circle for Angle Measurement Horizontal angles can be directly read in 1° or 1gon units. Free rotation feature allows you to read any angle from zero. All-Weather Dependability With the IPX6 rating, the instrument is protected against powerful water jets from all directions, meaning Sokkia Level B40A withstands a sudden shower or torrential rainfall. The advanced protection design also deters clouding or condensation inside the telescope.   Spesifikasi : Telescope

• Length :214mm (8.42in.)
• Magnification : 24x
• Objective Aperture : 32mm (1.26 in.)
• Resolving Power : 4″
• Field of View (at 100m/328ft.) :1°25’ (2.5m / 8.2ft.)
• Minimum Focus : - 0.2m (7.9 in.) from end of telescope / 0.3m (1ft.) from instrument center
• Image : Erect
• Stadia Constant : 0
• Stadia Ratio : 100
• Focusing Knob : 1-speed
• Sighting Aid : Gun Sight

Accuracy (1km double run leveling)

• Without Micrometer : 2.0mm (0.08 in.)
• With Micrometer : n/a

Compensator

• Type : Pendulum compensator with magnetic damping system
• Setting Accuracy : 0.5″
• Working Range : ±15′

Circular Level

• Sensitivity : 10′ / 2mm

Horizontal Circle

• Diameter : 99mm (3.9in.)
• Minimum Division : 1°/ 1gon

General

• Water Resistance : IPX6 (IEC 60529:2001)
• Operating Temperature : -20 to +50ºC (-4 to +122°F)
• Size Width x Length x Height : 122mm (4.8in.) x 214mm (8.4in.) x 140mm (5.51in.)
• Weight : 1.5kg (3.3lbs.)
