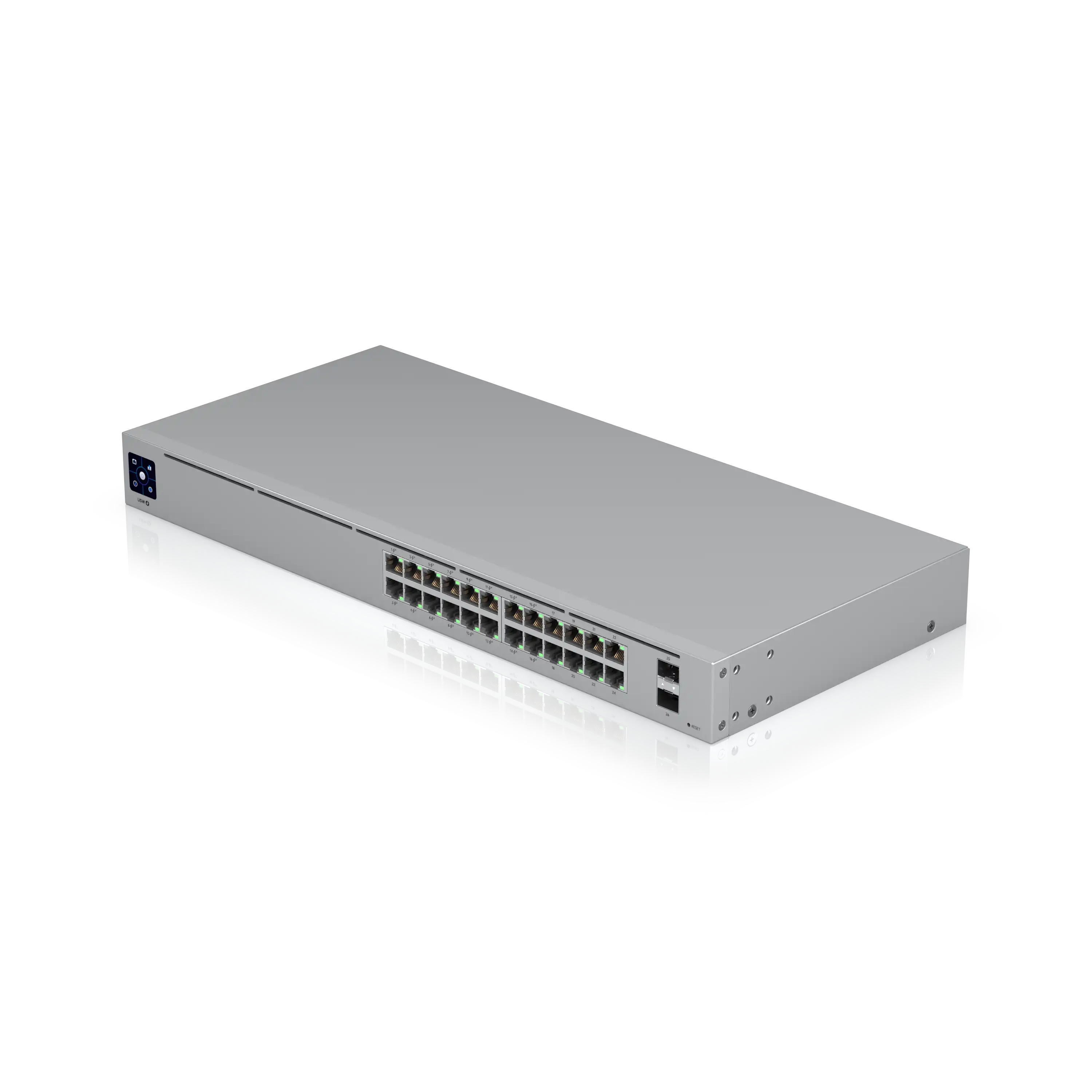

Ubiquiti UniFi USW-24-PoE Switch 24 Port Gigabit Managed PoE + SFP

Ubiquiti UniFi USW-24-PoE Switch 24 Port Gigabit Managed PoE + SFP

Spesifikasi :

Overview

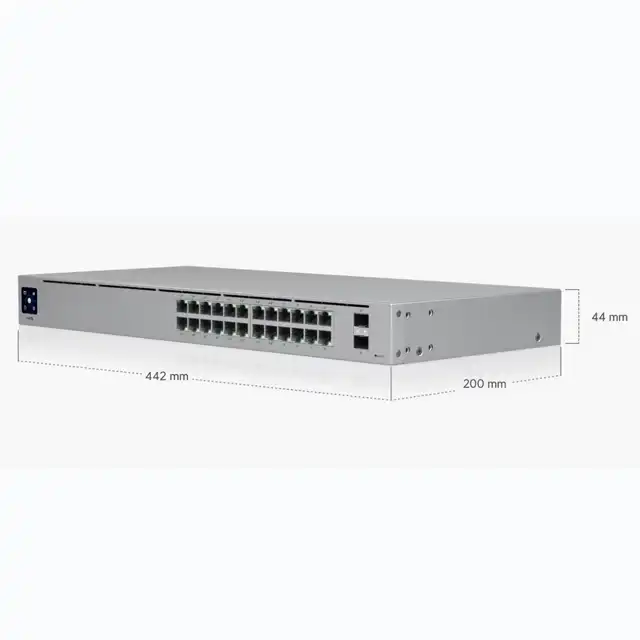

• Dimensions: 442 x 200 x 44 mm (17.4 x 7.9 x 1.7")

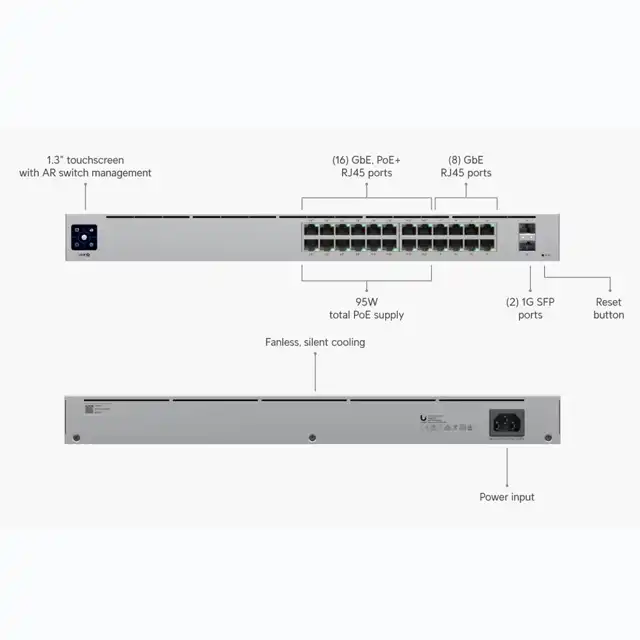

• Port Layout
  • 1 GbE RJ45 : 24 (16 PoE+) (1G/100M/10M)
  • 1G SFP : 2 (1G)
• Max. PoE Output: Up to PoE+
• Total PoE Availability: 95W
• Form Factor: Rack mount (1U)

Performance

• Switching Capacity: 52 Gbps
• Total Non-Blocking Throughput: 26 Gbps
• Forwarding Rate: 39 Mpps
• Supported VLANs: 1,000
• MAC Address Table Size: 8,000
• Packet Buffer Size: 0.5 MB
• Access Lists
  • IPv4: 128
  • MAC: 128

Layer 2 Features

• LACP Port Aggregation
• STP & RSTP
• Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
• IGMP Snooping
• 802.1X Control
• MAC-Based ACLs & Device Isolation
• DHCP Snooping & Guarding
• Egress Rate Limit
• Flow Control
• Storm Control
• Multicast & Broadcast Rate Limiting
• MAC Address Blocking
• IP-Based ACLs & Network Isolation
• MAC-Based Port Restriction
• Port Isolation
• Port Mirroring
• Jumbo Frames
• LLDP-MED
• Voice VLAN
• Loop Protection

Hardware

• PoE Ports
  • PoE+ : 16
• Max. PoE Wattage per Port by PSE
  • PoE : 15.4W
  • PoE+ : 32W
• Max. Power Consumption
  • 25W (Excluding PoE output)
  • 120W (Including PoE Output)
• Power Method: Universal input, 100—240V AC, 50/60 Hz
• Power Input Method: AC input
• Power Supply: AC/DC, internal, 120W
• Supported Voltage Range: 100—240V AC
• Management: Ethernet, AR
• Heat Dissipation (Excluding PoE Output): 85.3 BTU/hr
• Weight
  • Without mounting brackets: 3 kg (6.6 lb)
  • With mounting brackets: 3.1 kg (6.8 lb)
• Enclosure Material: SGCC steel
• Mount Material: SGCC steel
• Supported Rack Depth: 400~1200 mm (15.7-47.2")
• LCM Display: 1.3" touchscreen
• ESD Protection: Air: ± 16kV, contact: ± 12kV
• Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
• Ambient Operating Humidity: 10 to 90% noncondensing
• Certifications: CE, FCC, IC, Anatel

Software

• Application Requirements UniFi Network
• UniFi Network : Version 7.2.94 and later

Garansi 1 Tahun
