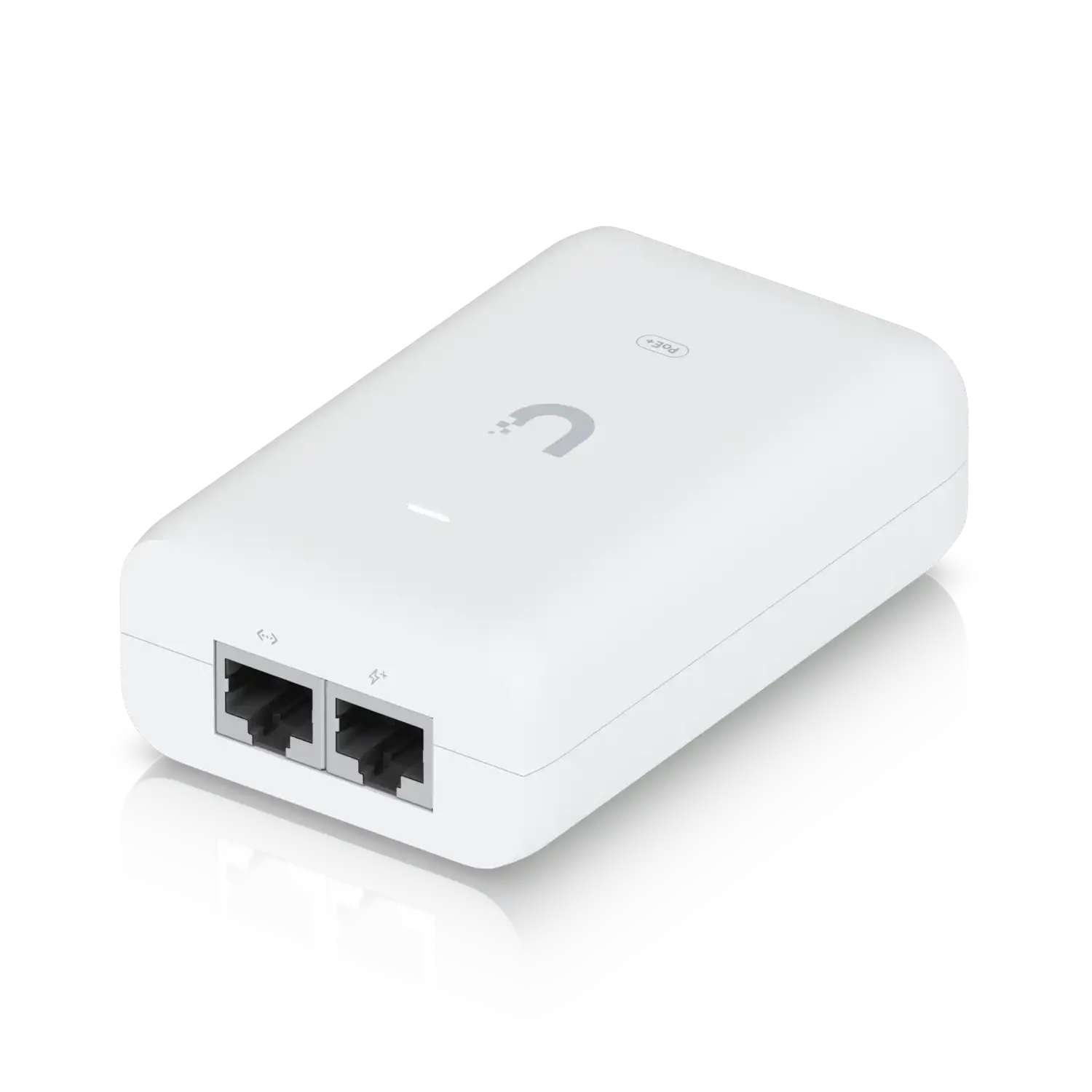

Ubiquiti U-POE-AT Unifi PoE Injector 802.3AT

Ubiquiti U-POE-AT Unifi PoE Injector 802.3AT

Spesifikasi :

• Model : U-POE-AT
• Output voltage : 48V DC @ 0.65A
• Rated voltage : 100—240V AC @ 50/60Hz
• Input current : 0.75A Max.
• Inrush current : <100A peak at 26_
• Efficiency : 87%
• Output ripple : 1% max.
• Switching frequency : 70 kHz max.
• Line regulation : ≤ 3%
• Load regulation : ≤ 5%
• 2-pair powering : Pins 4, 5 (+) and 7, 8 (-)
• 4-pair powering : No
• LAN activity indicator : No
• Gigabit LAN port : Yes
• Remote reset capability : No
• Reset button : No

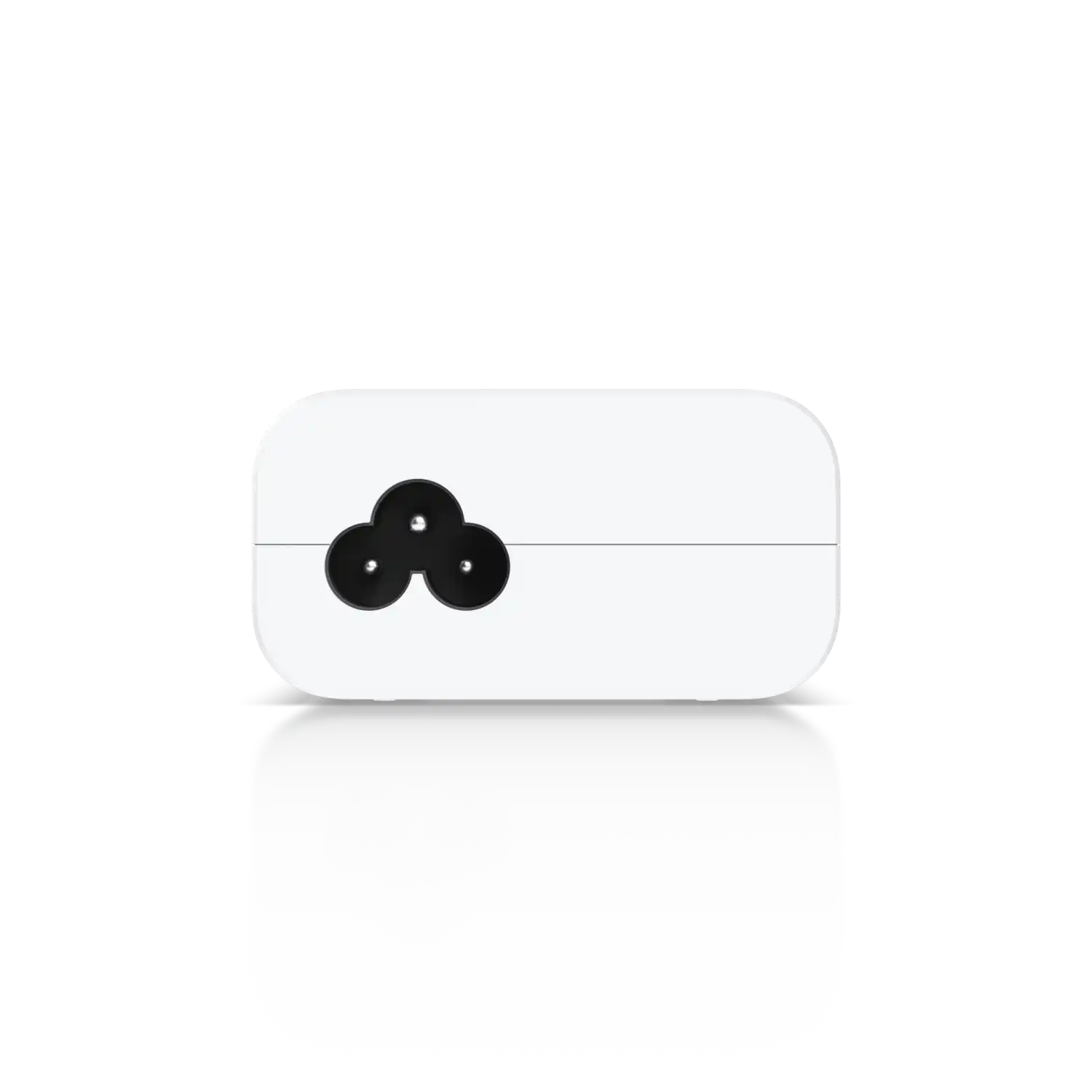

• AC connector : IEC-320 C6

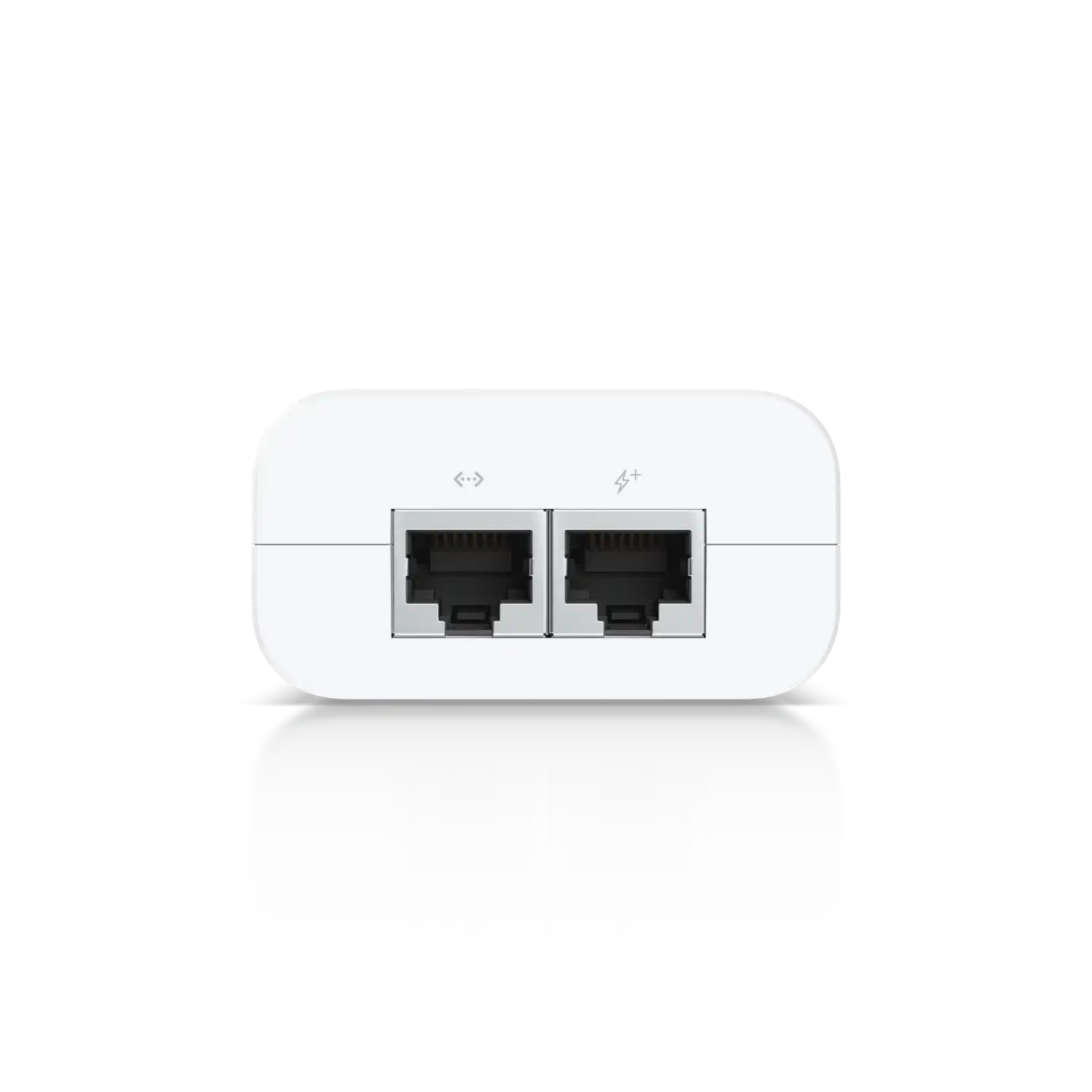

• Data In / PoE : RJ45 shielded socket
• Surge protection : Difference and common mode
• Clamping protection : 11V data, 60V power
• Max. surge discharge : 1500A (8/20 μs) power
• Peak pulse current : 36A (10/1000 μs) data
• Shunt capacitance : <5 pF data
• Response time :<1 ns
• Ambient operating temperature : 0 to 40° C (32 to 104° F)
• Storage temperature : -30 to 70°C (-22 to 158° F)
• Ambient operating humidity : 10 to 95% noncondensing
• Dimensions : 93 x 62 x 35 mm (3.66 x 2.44 x 1.38")
• Weight : 156 g (5.5 oz)
• Certifications    CE, FCC, IC, UL
• Garansi 1 Tahun
